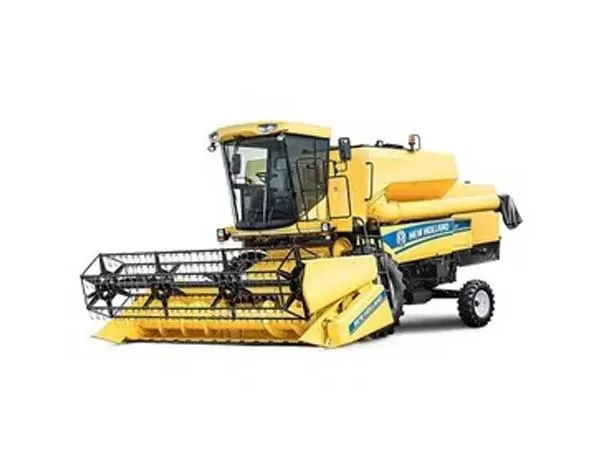

The New Holland TC5.30 Harvester is built to provide strong performance, effective harvesting and reliable operation as per the needs of today’s farming. This harvester is designed with innovative technology and robust components for smooth crop cutting, greater quality of grain and more output in the field. It is well-built and user-friendly, allowing for lengthy working hours in diverse agricultural circumstances. Farmers pick this harvester for its fuel efficiency, cheap maintenance and reliable field performance. New Holland TC5.30 Harvester is a good alternative to increase harvesting speed as well as overall agricultural efficiency.
| Technical Specification | |
| High-Capacity grain header | |
| Cutting width (m/ft) | 4.57/15 |
| Knife speed (cuts/min. | 1150 |
| Reel fore-aft control | Manual |
| Maize headers | |
| Rigid maize header | 5 row |
| Threshing drum | |
| Width (mm) | 1300 |
| Diameter (mm) | 607 |
| Speed range (rpm) | 387 - 1012 |
| Drum Concave | |
| Area (m²) | 0.79 |
| Number of bars | 14 |
| Angle of wrap (degrees) | 111 |
| Concave adjustment | Manual |
| Rotary Separator | |
| Diameter (m) | 0.605 |
| Speed (rpm) | 760 or 400 |
| Concave area (including rake) (m²) | 0.83 |
| Strawwalkers | |
| Numbers | 5 |
| Separation area with Rotary Separator (m²) | 4.5 |
| Separation area (less Rot. Sep.) (m²) | 5.3 |
| Cleaning | |
| Total sieve area under wind control (m²) | 3.97 |
| Cleaning fan speed range (rpm) | 325 to 927 |
| Cleaning fan speed control | Manual |
| Grain tank | |
| Volume (l) | 3000 |
| Unload capacity (l/sec) | 50 |
| Engine | |
| Displacement (l) | 5.9 |
| Emission level | Tier 3 |
| Injection system | Mechanical injectors |
|
Gross power ECE R120 (2000 rpm) [kW/hp(CV)]
|
96/130
|
| Maximum power ECE R120 (at 1800 rpm) [kW/hp(CV)] | 102/138 |
| Fuel tank capacity (l) | 300 |
| Transmission | |
| Traction | Mechanical |
| Speeds | 4 forward +1 reverse |
| Ground speed (km/h) | 25 |
