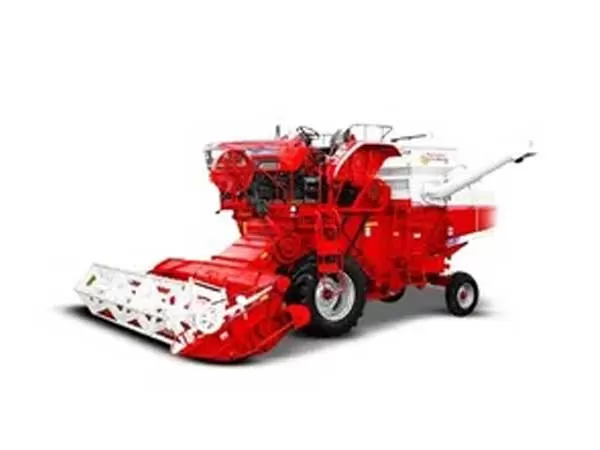

The Mahindra HarvestMaster H12 2WD Harvester is built to provide strong performance, effective harvesting and reliable operation as per the needs of today’s farming. This harvester is designed with innovative technology and robust components for smooth crop cutting, greater quality of grain and more output in the field. It is well-built and user-friendly, allowing for lengthy working hours in diverse agricultural circumstances. Farmers pick this harvester for its fuel efficiency, cheap maintenance and reliable field performance. Mahindra HarvestMaster H12 2WD Harvester is a good alternative to increase harvesting speed as well as overall agricultural efficiency.
| Model Name | Mahindra HarvestMaster H12 2WD |
| Tractor | |
| Model | Arjun Novo 605 DI-i |
| Engine Power kW (HP) | 42 kW (approximately 57 HP) |
| Drive Type | 2WD |
| Cutter Bar Assembly | |
| Working Width (mm) | 3580 |
| Cutting Height (mm) | 30-1000 |
| Cutter Bar Auger | Diameter-575 (mm) X Width-3540 (mm) |
| Number of Knife Blades | 49 |
| Number of Knife Guards | 24 |
| Knife Stroke (mm) | 80 |
| Reel Assembly | |
| Range of Speed at Engine (r/min) | |
| Minimum r/min | 30 |
| Maximum r/min | 37 |
| Reel Diameter (mm) | 885 |
| Thresher Mechanism | |
| Paddy | |
| Thresher Drum | |
| Width (mm) | 1120 |
| Diameter of Thresher Drum (mm) | 592 |
| Range of Speed at Engine r/min | |
| Minimum r/min | 600 |
| Maximum r/min | 800 |
| Concave | |
| Range of Adjusting Clearance | Front (mm) 12 to 30 |
| Rear (mm) 16 to 40 | |
| Adjustment | An adjustment lever is provided at RHS of operator for adjusting the clearance |
| Cleaning Sieves | |
| Number of Upper Sieves | 2 |
| Upper Sieve Area (m2) | 1.204/0.705 |
| Lower Sieve Area (m2) | 1.156 |
| Straw Walker | |
| Number. of Straw Walkers | 5 |
| Number of Steps | 4 |
| Length (mm) | 3540 |
| Width (mm) | 210 |
| Capacity | |
| Grain Tank (kg) | Paddy: 750 kg |
| Grain Tank (m3) | 1.2 |
| Tyre | |
| Front (Drive wheels) | 16.9 -28, 12 PR |
| Rear (Steering wheels) | 7.5-16, 8 PR |
| Overall Dimensions | |
| Length with trailer/without trailer (mm) | 10930/6630 |
| Width (mm) | 2560 |
| Height (mm) | 3730 |
| Ground Clearance (mm) | 422 |
| Mass of Tractor Mounted Combine Harvester (kg) | 6750 |
| Chassis Width (m) | 1.1684 |
| Track Width | |
| Front (mm) | 2090 |
| Rear (mm) | 1920 |
| Minimum Turning Diameter | |
| With Brake (m) | 7.8/8.0 |
| Without Brake (m) | 13.6/13.9 |
