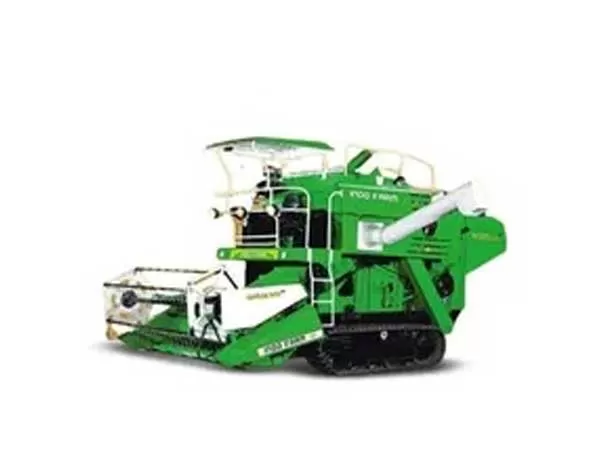

The Indo Farm AGRICOM 1070 SW5 Harvester is built to provide strong performance, effective harvesting and reliable operation as per the needs of today’s farming. This harvester is designed with innovative technology and robust components for smooth crop cutting, greater quality of grain and more output in the field. It is well-built and user-friendly, allowing for lengthy working hours in diverse agricultural circumstances. Farmers pick this harvester for its fuel efficiency, cheap maintenance and reliable field performance. Indo Farm AGRICOM 1070 SW Harvester is a good alternative to increase harvesting speed as well as overall agricultural efficiency.
| Technical Specification | |
| Standard Fitments Features | Details |
| Make | TATA 497SP27 |
| No. of Cylinders | 4 |
| Power | 60 HP@2800 rpm |
| Cooling System | Water Cooled |
| Air Cleaner | Dry Type |
| CUTTER BAR MECHANISM | |
| Cutting Width | 2.28 m (7.5 feet) |
| Height Adjustment | 30-1295 mm |
| TRANSMISSION/DRIVE | |
| TRANSMISSION | Hydrostatic transmission comprising of hydraulic variable displacement, double pump & two fixed displacement motors |
| Drive | Chain & Sprocket |
| Height Adjustment | Hydraulic |
| Feeder Housing | Chain type feed rack |
| THRESHING DRUM | |
| Drum Diameter | 605 |
| Threshing Section Width | 760 |
| Rotor Speed | 500-1275 rpm |
| Speed Adjustment | Mechanical |
| RICE CONCAVE | |
| Length | 770 |
| Clearance | Entrance 13-35 mm |
| Adjustment | Mechanical |
| CLEANING | |
| Upper sieve Area | 1.38 m² |
| Lower Sieve Area | 1.12 m² |
| STRAW WALKER | |
| No. of Straw Walker | 4 |
| No. of Steps | 4 |
| Length (mm) | 2900 |
| Width (mm) | 178 |
| CAPACITY | |
| Fuel Tank | 1.25 m³ |
| Grain Tank | 160 Ltr. |
| TRACK | |
| Length of belt on ground | 1830 mm |
| Wheel Base | 1435 mm |
| Width of Belt | 450 mm |
| No. of Track Roller (each side) | 5 |
| No. of Rubber Grousers (each side) | 60 |
| Height of Grouser | 30 mm |
| Ground Contact Area | 16470 cm² |
| DIMENSIONS | |
| Length | 6750 mm |
| Width | 6750 mm |
| Height | 3050 mm |
| Ground Clearance | 260 mm |
| Weight | 4875 Kg. approx. |
