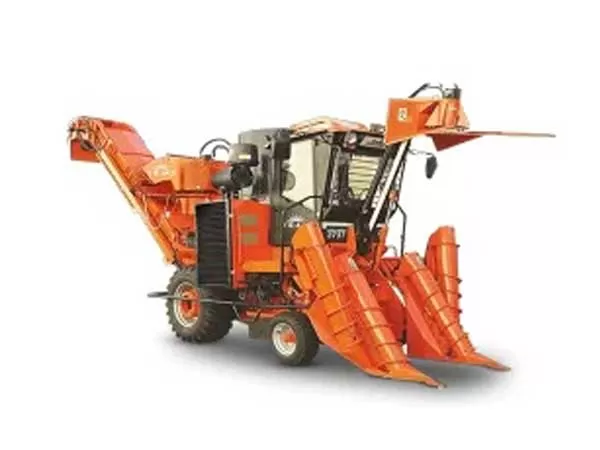

The Shaktiman 3737 Tejas Sugarcane Harvester Harvester is built to provide strong performance, effective harvesting and reliable operation as per the needs of today’s farming. This harvester is designed with innovative technology and robust components for smooth crop cutting, greater quality of grain and more output in the field. It is well-built and user-friendly, allowing for lengthy working hours in diverse agricultural circumstances. Farmers pick this harvester for its fuel efficiency, cheap maintenance and reliable field performance. Shaktiman 3737 Tejas Sugarcane Harvester Harvester is a good alternative to increase harvesting speed as well as overall agricultural efficiency.
| DIMENSIONS | |
| Overall Length (mm) | 11464 |
| Overall Width (mm) | 2500 |
| Overall Height (mm) | 3792 |
| Weight (kg/lbs) | 8560 / 18,872 |
| Min. Ground Clearance (mm) | 180 / 320 (at lowest/highest cylinder) |
| Min. Turning Radius (mm) | 5500 |
| ENGINE | |
| Make | Cummins |
| Series | B 5.9 |
| Power | 173 HP |
| Cylinder Volume | 5.9 Liters |
| Number of Cylinder | 6 |
| Aspiration | Turbo/Air Cooled |
| TRANSMISSION | |
| Type | Hydrostatic |
| Travel Speed (kmph/mph) | Variable upto 15 / 9 |
| CAPACITY | |
| Fuel Tank (L/imp.gal) | 208 / 45.8 |
| Hydraulic Oil Tank (L/imp.gal) | 130 / 29 |
| TYRES | |
| Front | 10.5 / 65-16, 14 PR |
| Front Pressure | 4.14 bar / 60 psi |
| Rear | 16.9 / 28, 12 PR |
| Rear Pressure | 3.1 bar / 45 psi |
| CROP DIVIDER | |
| Distance Between the Tips | 1100 mm / 43.3 inch |
| Lower Section | Hardened Shoe |
| Height Adjustment | Hydraulic |
| Spiral Angle Degree | 30 - 32 |
| FEED ROLLERS | |
| Number of Rollers | 11 |
| No. of Rollers on Roller Train | 8 |
| Drive | Hydraulic & Reversible |
| Upper Rollers | Floating |
| CHOPPER | |
| Number of Knives per Drum | 3 |
| Deflector Plates | Adjustable |
| KNOCKDOWN ROLLER | |
| Height | Adjustable |
| Angle Degree | 50 |
| EXTRACTOR | |
| Number of Blades | 3 |
| Hood | Directional |
| ELEVATOR | |
| Drive | Hydraulic & Reversible |
| Turning Angle | 168 |
| Weight | 8300 Kg |
| TOPPER | |
| Height Variation (mm / inch) | 1050-2800 / 41.3-110.2 |
| Height Adjustment | Hydraulic |
